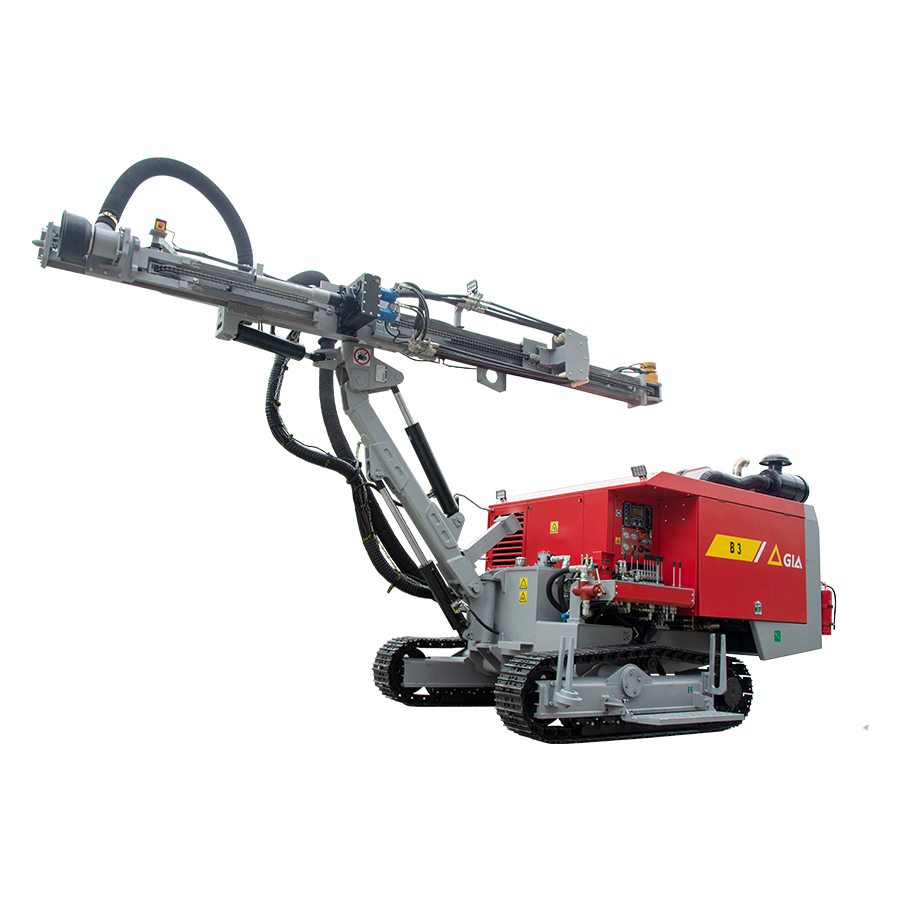

B3 Fully hydraulic open hole drill

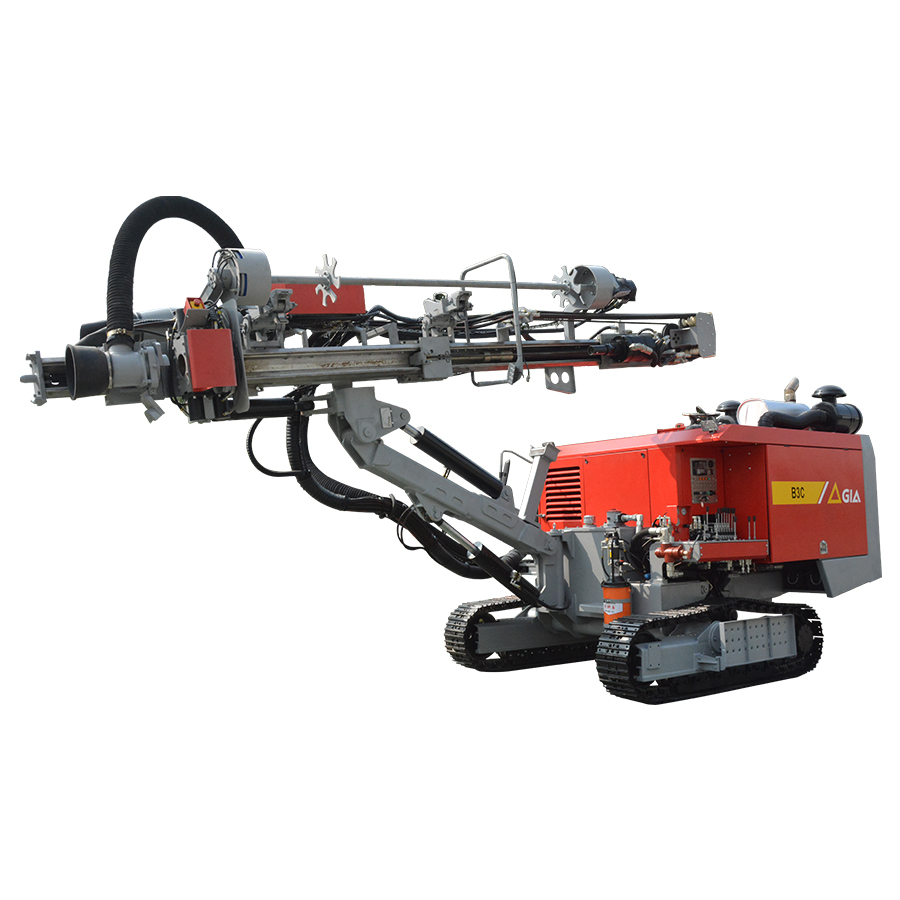

B3 Fully hydraulic open hole drill
Recommended aperture range: 80-125mm B3 integrated open air submersible hole drill will open air open hole drill and screw air compressor system integrated drilling equipment, compact structure, good integrity, easy to move. The drilling rig has the characteristics of energy saving and high efficiency, safety and environmental protection, flexible mobility, easy operation and stable performance. Mainly suitable for mining quarrying, road construction, water power and other open engineering drilling blasting holes.
B3 Technical parameters
|
Drilling range |
|
|
Drilling diameter |
90~140mm |
|
Drilling depth |
24m |
|
Drill rod specification |
76X3000mm |
|
Drilling rod capacity |
6+1 |
|
Engine |
|
|
Brand |
Yu Chai China Standard III |
|
Item no |
YCA-7240-T300 |
|
Power |
176KW |
|
Air compressor |
|
|
Air capacity |
13.5m3/min |
|
Max working pressure |
18bar |
|
Compression type |
Single stage screw compression |
|
Slewing head |
|
|
Slewing speed |
0~120rpm |
|
Slewing torque |
2000Nm |
|
Propeller |
|
|
Propulsion stroke |
3700mm |
|
Compensation length |
1000mm |
|
Propulsion mode |
Oil cylinder+wire rope |
|
Propulsion beam material |
Aviation aluminium |
|
Maximum propulsion |
12kN |
|
Maximum drawing force |
18kN |
|
Traveling system |
|
|
Electrical voltage |
24V |
|
Traveling speed |
1.6~3.2km/h |
|
Climbing ability |
20° |
|
Chassis swing angle |
±10° |
|
Drilling arm |
|
|
Drilling lifting range |
down 28°/up 45° |
|
Left and right swing angle of drilling arm |
Left 25°/right 25° |
|
Left and right swing angle of bracket |
Left 10°/right 91° |
|
Propeller pitching range |
25° |
|
Size & Weight |
|
|
Weight |
9200kg |
|
Size |
6800X2400X3000mm |
| borehole diameter | 90-130mm |
| drilling depth | 21m |
| Drilling rod specifications | 76X3000m |
| Push the trip | 3700mm |
| weight | 10500kg |
| dimensions (length X, width X, height) | 7800X2400X2900mm |
| Push the trip | 3700mm |
| weight | 10500KG |
| dimensions (length X, width X, height) | 7800X2400X2900mm |
