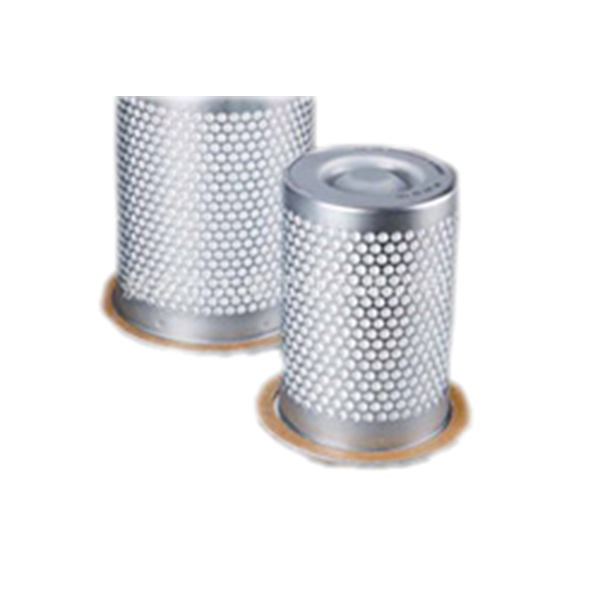

Mitsui oil and gas separation filter
Mitsui oil and gas separation filter
The function of the air compressor oil and gas filter is to separate the oil from the compressed air and get the compressed air without oil. The quality of the oil and gas separation filter directly affects the efficiency, fuel consumption and compressed air quality of the compressor. High quality oil and gas separation filter should have the characteristics of thorough oil and gas separation, small initial resistance and long service life. The oil and gas separation filter can efficiently separate the oil in the compressed air to ensure the quality of clean air discharged.
Performance parameters
gas and oil content after separation: 3 PPMW / W initial pressure difference: 0.02MPa service life:> 4000h
| model | Original element number | Filter diameter(mm) | Filter height(mm) | identification of product |
| 50HP | 7110345394500 | 240 | 261 | 32 211 17 261 |
| 50HP | 7110337394500 | 270 | 333 | 32 211 17 333 |
| 100HP | 71127082545 | 410 | 330 | 32 211 34 330 |
| 30HP | 72104040807 | 116 | 245 | 32 211 11 245 |
| 50HP | 7212302080123 | 116 | 443.5 | 32 211 11 443 |
