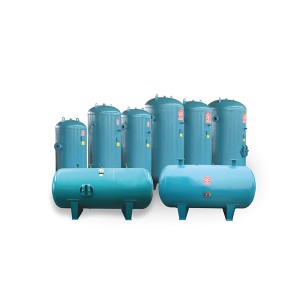

AIR TANK

Short Description:

product presentation

In February 2009, the company obtained the qualification of D1 and D2 grade pressure vessel manufacturing license issued by the State General Administration of Quality Supervision, Inspection and Quarantine. The pressure vessel manufacturing site covers an area of more than 40,000 square meters, with special production and testing equipment, and has established middle and senior professional technicians and technical workers with experience in pressure vessel manufacturing and management. It mainly produces all kinds of mines

Send email to us

Product Detail

Product Tags

Product Presentation

industrial compressor gas storage tanks and the first and second types of non-standard pressure vessels. Since the company has established the pressure vessel manufacturing quality assurance system, Constantly study and improve the advanced technology and improve the quality assurance system, to ensure the product quality and management effect. The pressure vessel

pressure vessel, low pressure vessel (only extreme and highly hazardous medium only), low pressure reaction vessel and low pressure storage vessel (only flammable medium or moderate toxic medium). Class I pressure vessel (Grade D1), the low pressure vessel except as specified above is Class I pressure vessel.

Main product projects

Vertical gas storage tank

Bedroom gas storage tank

oil and gas separator Non-standard products (heat exchanger, chemical equipment)

Main technical performance parameters

Model pressure power		design temperature	Main material	Inside the container	Main thickness		Heavy container height	Air intake		air drain
	Bar	C		D i	δ	Kg	H1	H2	DN	H3	DN
2.5/0.8	0.8	150	Q235-B	1200	8	759	2785	852	100	2252	100
2.5/1.0	1.0		Q345R		8	775	2785	852		2252
2.5/1.3	1.3		Q345R		8	775	2785	852		2252
2.5/1.6	1.6		Q345R		8	785	2785	852		2252
3.0/0.8	0.8	150	Q235-B	1300	8	821	2831	950	100	2150	100
3.0/1.0	1.0		Q345R		8	850	2831	950		2150
3.0/1.3	1.3		Q345R		8	865	2831	950		2150
3.0/1.6	1.6		Q345R		8	865	2831	950		2150
4.0/0.8	0.8	150	Q235-B	1400	8	975	3061	958	125	2358	125
4.0/1.0	1.0		Q345R		8	992	3061	958		2358
4.0/1.3	1.3		Q345R		8	1000	3061	958		2358
4.0/1.6	1.6		Q345R		8	1000	3090	958		2462
5.0/0.8	0.8	150	Q235-B	1400	8	1176	3811	960	125	3010	125
5.0/1.0	1.0		Q345R		8		3811	960		3010
5.0/1.3	1.3		Q345R		8	1209	3811	960		3010
5.0/1.6	1.6		Q345R		10	1455	3795	980		3028
6.0/0.8	0.8	150	Q235-B	1500	8	1352	3974	1016	125	3166	125
6.0/1.0	1.0		Q345R		8	1360	3974	1016		3166
6.0/1.3	1.3		Q345R		8	1360	3974	1016		3166
6.0/1.6	1.6		Q345R		10	1768	3988	1022		3166
8.0/0.8	0.8	150	Q345R	1800	8	1563	3741	1083	150	2858	150
8.0/1.0	1.0		Q345R		8	1563	3741	1083		2858
8.0/1.3	1.3		Q345R		10	2032	3745	1100		2860
8.0/1.6	1.6		Q345R		12	2540	3748	1102		2862
10.0/0.8	0.8	150	Q345R	2000	8	1712	3890	1142	150	2942	150
10.0/1.0	1.0		Q345R		8	1780	3890	1142		2942
10.0/1.3	1.3		Q345R		10	2140	3892	4.4		2944
10.0/1.6	1.6		Q345R		14	2675	3848	1150		2950
12.5/0.8	0.8	150	Q345R	2000	8	2140	4640	2	150	3692	150
12.5/1.0	1.0				10	2675	44			3698
12.5/1.3	1.3				10	2730		1150		3707
12.5/1.6	1.6				14	4450	4665	1231		3716
15.0/0.8	0.8	150	Q345R	2200	8	2310	4676	1295	150	3585	150
15.0/1.0	1.0	150	Q345R	2200	10	3000	4680	1295	150	3585	150
20.0/0.8	0.8	150	Q345R	2400	8	2873	5128	1360	200	4050	200
20.0/1.0	1.0	150	Q345R	2400	10	3800	5130	1360	200	4050	200
30.0/0.8	0.8	150	Q345R	2500	10	5235	6825	1406	200	5503	200
30.0/1.0	1.0	150	Q345R	2500	10	5300	6825	1406	200	5503	200
